Types of Lithium Ion Batteries: 6 Main Chemistries Explained
The main types of lithium-ion batteries are designed for different priorities, from long cycle life and thermal stability to higher energy density and power. Six commonly discussed lithium-ion chemistries include LFP, NMC, LCO, LMO, NCA and LTO. Each offers a different balance of energy density, cycle life, power output and thermal characteristics, making them suitable for different applications. This guide compares their key differences to help you understand which type fits solar storage, backup power, EVs and everyday electronics.
Key Takeaways
Six common lithium-ion chemistries include LFP, NMC, LCO, LMO, NCA, and LTO, each balancing energy density, lifespan, and thermal behavior differently.
LFP combines long cycle life with strong thermal stability, making it widely used in stationary storage and portable power stations.
NMC and NCA offer higher specific energy, which is useful where battery weight and space matter.
Cylindrical, prismatic and pouch describe cell formats rather than battery chemistry.
The right battery depends on the application, including required runtime, power, cycle life, size and safety considerations.
The 6 Types of Lithium-Ion Batteries at a Glance
All six types of lithium-ion batteries use lithium ions moving between electrodes, but their materials create different performance characteristics. Most are named after their cathode chemistry, while LTO is defined by its lithium-titanate anode. These differences shape energy density, cycle life, thermal stability and typical applications, as shown in the table below.
Type | Specific energy (indicative) | Typical cycle life | Thermal stability | Best suited to |
LFP | 90–120 Wh/kg | 2,000+ cycles | High | Home solar storage, backup power, portable power stations |
NMC | 150–220 Wh/kg | 1,000–2,000 cycles | Moderate | EVs, e-bikes, power tools |
LCO | 150–200 Wh/kg | 500–1,000 cycles | Lower | Phones, laptops, cameras |
LMO | 100–150 Wh/kg | 300–700 cycles | Relatively high | Medical devices, power tools |
NCA | 200–260 Wh/kg | Around 500 cycles | Lower | Long-range EVs |
LTO | 50–80 Wh/kg | 3,000–7,000 cycles | High | UPS, specialist storage |
Source: Battery University
Figures are indicative chemistry-level ranges based on battery technology references. Actual performance varies by cell design, temperature, depth of discharge and operating conditions.
Lithium Iron Phosphate (LFP)
LFP is one of the most widely used lithium-ion chemistries for energy storage. It uses lithium iron phosphate as the cathode material rather than nickel- or cobalt-based cathode materials. This chemistry is known for strong thermal stability and long cycle life, although it generally offers lower energy density than many nickel-based alternatives. The trade-off is lower energy density, so an LFP battery may need more space to store the same amount of energy as some nickel-based chemistries. For this reason, LFP is commonly used in home solar batteries, backup power systems, portable power stations and some electric vehicles.
Lithium Nickel Manganese Cobalt Oxide (NMC)
NMC combines nickel, manganese and cobalt to balance energy density, power output and battery life. Different formulations, such as NMC811, adjust the mix of these materials to improve certain characteristics. Its ability to store more energy in a relatively compact pack makes NMC popular for electric vehicles, e-bikes and power tools, although the exact performance depends on the battery design.
Lithium Cobalt Oxide (LCO)
LCO is one of the earliest lithium-ion chemistries and is still commonly found in smaller electronic devices. Its main advantage is high energy density, allowing phones, laptops and cameras to store more energy in a compact size. However, LCO typically requires more careful thermal management and generally has a shorter cycle life than some newer lithium-ion chemistries. These characteristics make it less common in larger energy storage systems.
Lithium Manganese Oxide (LMO)
LMO uses manganese-based chemistry that supports good power output and thermal performance. It can deliver strong bursts of power, but it usually offers lower energy density and cycle life compared with some newer lithium-ion options. Today, LMO is often combined with other chemistries such as NMC and is used in applications including power tools, medical devices and some electric vehicles.
Lithium Nickel Cobalt Aluminum Oxide (NCA)
NCA is designed to store a large amount of energy while keeping battery weight lower, making it useful where range and size are important. This is why it has been used in some electric vehicles and high-energy applications. The trade-off is that NCA batteries require careful thermal management and battery controls to maintain reliable operation.
Lithium Titanate (LTO)
LTO uses lithium titanate instead of the graphite anode commonly found in other lithium-ion batteries. It stands out for fast charging, long cycle life and good performance in colder conditions. However, its lower energy density and higher cost make it less common for everyday consumer products. LTO is mainly used in specialist applications such as UPS systems, commercial storage and transport.
Lithium-Ion Chemistry vs Cell Format: What Is the Difference?
Lithium-ion chemistry and cell format describe two different aspects of a battery. Chemistry refers to the materials inside the cell, such as LFP or NMC, which influence energy density, cycle life, and thermal behavior. Cell format describes how those materials are packaged, with cylindrical, prismatic and pouch designs offering different advantages for different applications.
Cylindrical Cells
Cylindrical cells package rolled electrode layers inside a metal casing. Their robust structure and established manufacturing process make them common in applications such as laptops, power tools and many EV battery packs.
Prismatic Cells
Prismatic cells use a rigid rectangular case that allows efficient use of space in larger battery packs. They are commonly used in energy storage systems and electric vehicles where packaging efficiency and structural support are important.
Pouch Cells
Pouch cells use a lightweight flexible outer layer instead of a rigid casing. Their compact design makes them suitable for devices where size and weight matter, including consumer electronics and some EV applications.
In simple terms, chemistry explains what the battery is made of, while format explains how those cells are built into a device or system. A home battery, smartphone and EV may use different formats even when they rely on similar lithium-ion chemistry principles.
Which Lithium Battery Type Should You Choose?
Choosing a lithium-ion battery depends on the requirements of the application. A home backup system, portable power station and electric vehicle all require different balances of energy capacity, lifespan, weight and power output. Battery chemistry is only one part of the decision. Reliable and safe performance also depends on factors such as cell quality, battery management system (BMS), charging controls, operating temperature and correct installation.

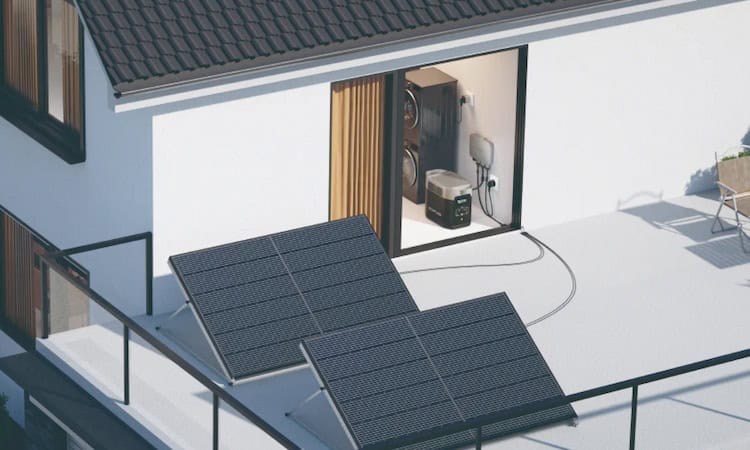

Home Solar Storage and Backup Power
South African homes using solar and backup systems often choose LFP batteries because they offer long cycle life and strong thermal stability. These advantages suit systems that charge and discharge regularly, storing solar energy during the day and providing power when needed.
While LFP has lower energy density than some nickel-based chemistries, this is usually less important for fixed home systems where lifespan and reliable cycling matter more than reducing size and weight. When selecting a home battery system, factors such as capacity, inverter compatibility and installation requirements should also be considered. The right chemistry and system design depend on factors covered in the best lithium solar batteries.
For households that need backup power for selected appliances without a permanently installed battery, an LFP-based portable power station can provide a flexible option. The EcoFlow DELTA 3 Plus Portable Power Station uses a 1,024Wh LFP battery, provides 1,800W AC output and supports expansion up to 5kWh with additional batteries.
Portable Backup and Outdoor Power
Portable systems need to balance capacity, weight and mobility. LFP is widely used in this category because its long cycle life supports frequent charging, while its thermal stability suits regular use across home backup and outdoor activities.
The EcoFlow RIVER 3 Portable Power Station is designed for lighter backup needs. It uses a 245Wh LFP battery rated for around 3,000 cycles to 80% capacity, with a 300W rated output for smaller devices such as routers, lights and laptops. At 3.55kg, it can be moved easily between home, work and outdoor trips.
Mobility and Consumer Devices
Vehicle and portable electronics applications place different demands on lithium-ion batteries. NMC and NCA have been widely used in electric vehicles because their higher energy density can help provide longer range with less battery weight. LFP is also used in some EVs where cycle life and thermal stability are important considerations.
Smaller devices such as phones, laptops and cameras have historically used LCO because it can store significant energy in a compact cell. In these products, manufacturers usually select the battery chemistry based on size, performance and design requirements.
Conclusion
Understanding the different types of lithium-ion batteries helps you match battery chemistry to the needs of each application. LFP is commonly selected for situations where cycle life and thermal stability are important, while NMC, NCA and other chemistries may be preferred when higher energy density or lower weight is a priority. The best choice depends on factors such as capacity requirements, operating conditions and how the battery will be used.
FAQs
Is LiPo different from lithium-ion?
LiPo, or lithium polymer, belongs to the broader lithium-ion family rather than forming a directly comparable chemistry category such as LFP or NMC. The term more often refers to electrolyte and cell-construction differences, particularly flexible pouch-style cells. A LiPo label alone, therefore, does not determine the battery’s safety or performance. Electrode chemistry, cell construction, protection circuitry, and operating conditions all matter.
Which is better, lithium-ion or LiFePO4?
LiFePO4, or LFP, is itself a type of lithium-ion battery, so they are not two separate battery families. Compared with higher-energy chemistries such as NMC or LCO, LFP generally offers lower specific energy but stronger thermal stability and a longer cycle life. That makes it well-suited to applications such as energy storage and portable power, while higher-energy chemistries may be preferred where size and weight are more important.
What type of lithium battery is best?
There is no single best type. Phones often prioritize compact size and energy density, which is why LCO has historically been used in many consumer electronics. EV manufacturers may select NMC, NCA or LFP depending on priorities such as range, cost, lifespan and thermal management. Home storage systems often consider LFP because of its cycle life and thermal characteristics. Match the chemistry to your main use case instead of chasing a universal ranking.
Is it safe to keep LiFePO4 batteries in the house?
Yes. LFP is known for strong thermal stability compared with many other lithium-ion chemistries and contains no cobalt. Keep the unit in a ventilated spot, away from direct heat, avoid overcharging, and choose a model with a full battery management system. These practices help maintain performance and reduce risks for lithium batteries, regardless of chemistry. LFP is known for strong thermal stability compared with many other lithium-ion chemistries, but proper storage, charging, and handling are still important.
What should I do if my lithium battery starts swelling?
Stop using and charging the battery. Do not puncture, crush, or deliberately discharge a swollen cell. Keep the device away from heat and combustible materials if it is safe to do so, then follow the manufacturer’s instructions or contact an appropriate battery or e-waste collection service for disposal. Damaged lithium-ion batteries should not be placed in ordinary household rubbish or standard recycling bins.
