The EcoFlow 125W bifacial modular solar panel offers 25% efficiency, plug-and-play expansion, and reliable performance in various weather conditions, making it ideal for long-term home and outdoor use.

TOPCon

Solar Cell

Up to 30-Year Lifespan

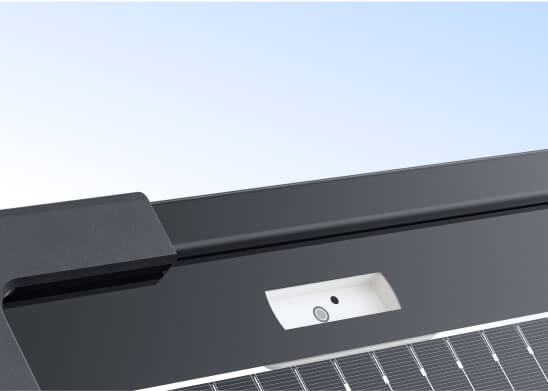

Integrated

Angle Guide

Modular Design

Max parallel connection of 8 panels(1000W).

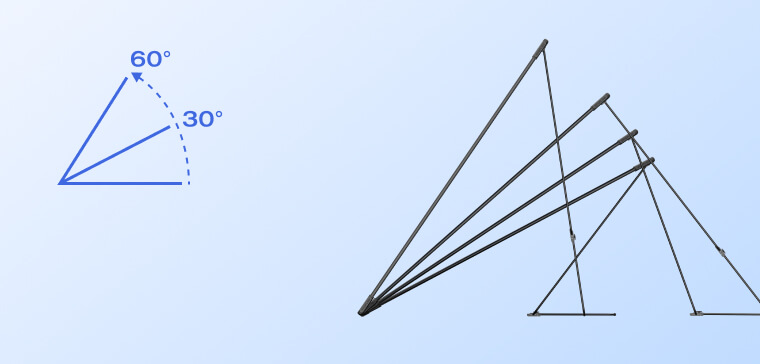

30°-60°

Adjustable

25%

Solar Efficiency

N-Type TOPCon cell

Bifacial Design

Lightweight & Portable

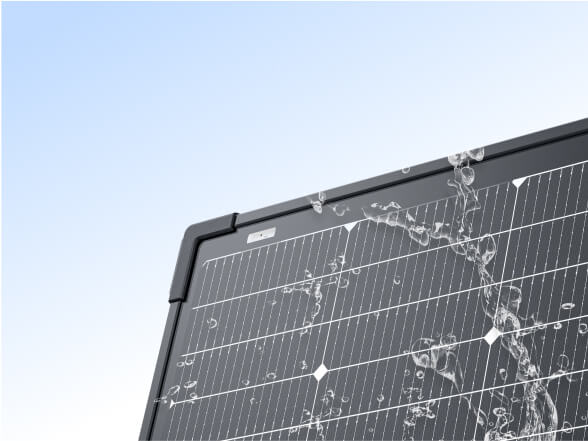

IP68

Waterproof

Modular Design

Max parallel connection of 8 panels(1000W).

25%

Solar Efficiency

N-Type TOPCon cell

TOPCon

Solar Cell

Integrated

Angle Guide

Bifacial Design

30°-60°

Adjustable

IP68

Waterproof

Up to 30-Year Lifespan

Lightweight & Portable

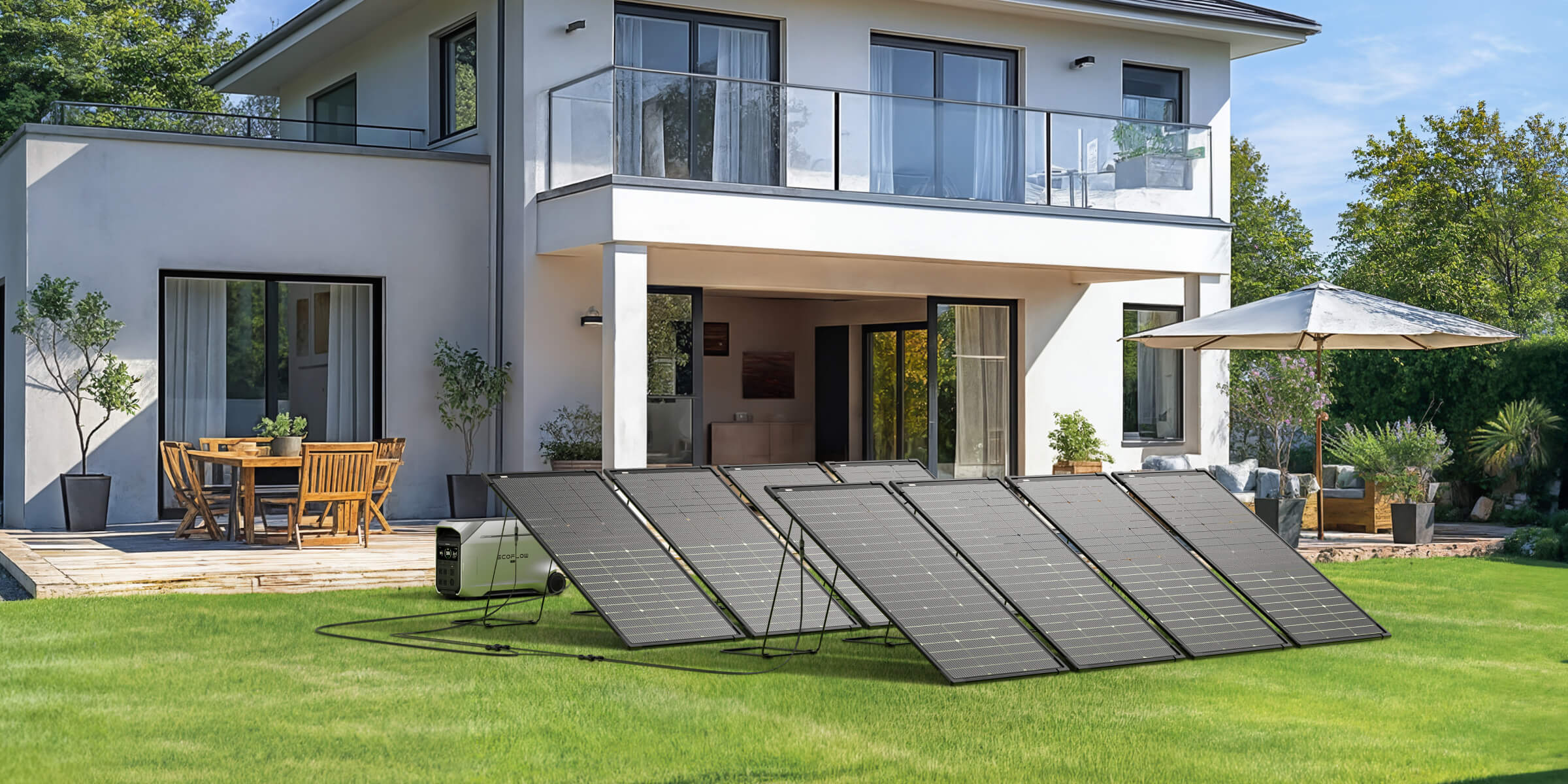

Perfectly Tailored for Home Use

Long-Lasting Solar Solution for Your Home

With a 30-year lifespan, this durable, low-maintenance solar panel is ideal for home use.

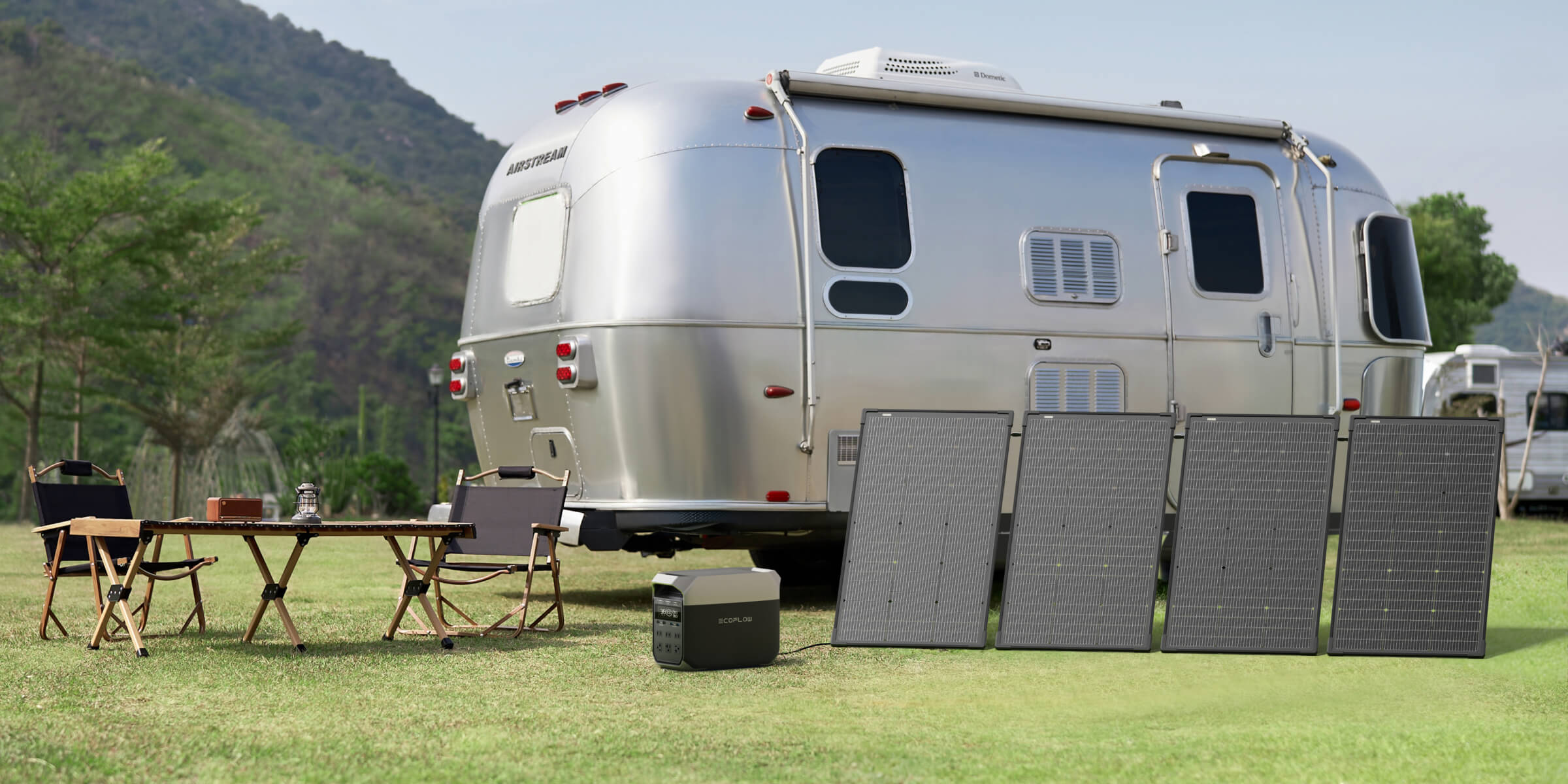

Home Backyard

Fully charge EcoFlow DELTA Pro 3(4kWh) in as fast as 3-4 hours with 3 sets of 500W (125W × 4) panels^[1].

Fully charge EcoFlow DELTA 3(1kWh) in as fast as 2-3 hours with 1 set of 500W (125W × 4) panels^[1].

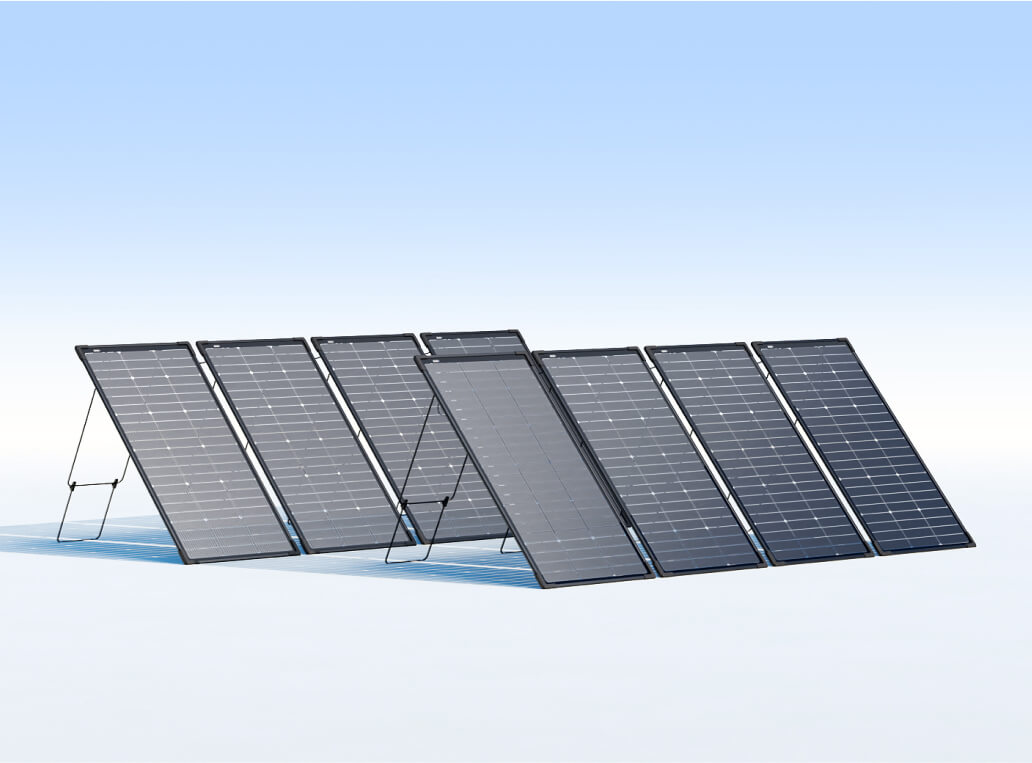

Modular Design

Seamless Expansion and Broad Compatibility

The EcoFlow 125W Bifacial Solar Panel features an innovative modular design, delivering 125W power, 50V, and 3A current output, designed for seamless expansion within its safe range, it offers exceptional adaptability with various EcoFlow portable power stations.

50V Design For Parallelling

Upgraded XT-60 Ports

Simple Connections, High Expandability

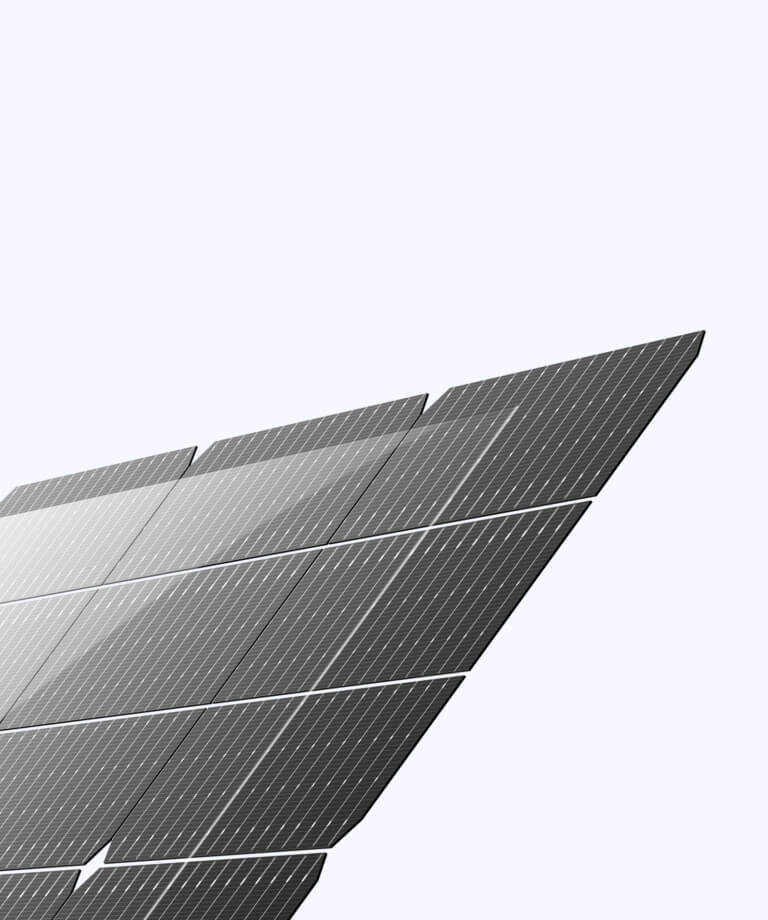

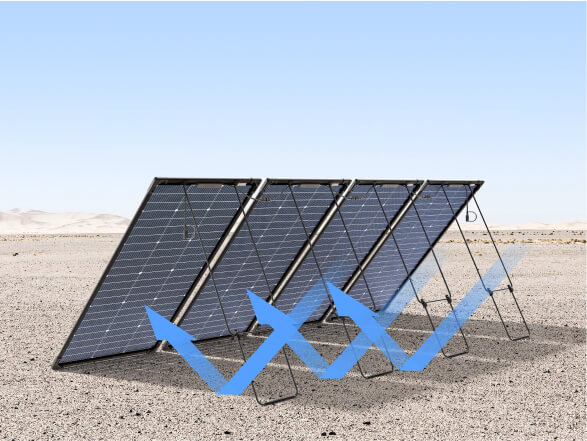

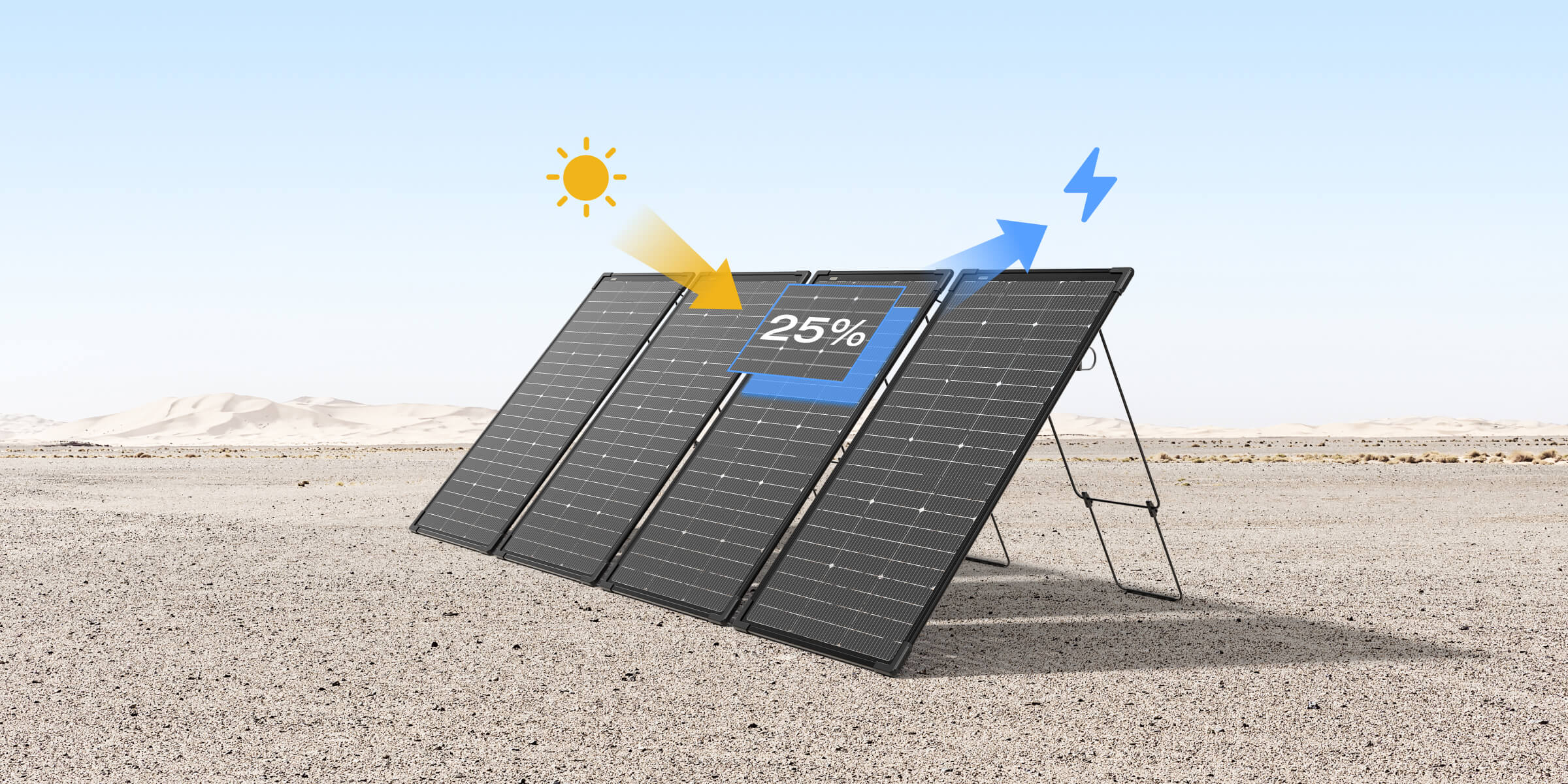

Revolutionary N-Type TOPCon Solar Cells & Dual-Sided Design

Maximize Energy Generation

With N-Type TOPCon technology, achieve up to 25% conversion efficiency. The dual-sided design generates Max. 138W^[2] bifacial output, capturing more solar energy.

7.21%

Grass

9.54%

Cement

9.84%

Sandy Land

14.83%

Snow

24.85%

Mirror

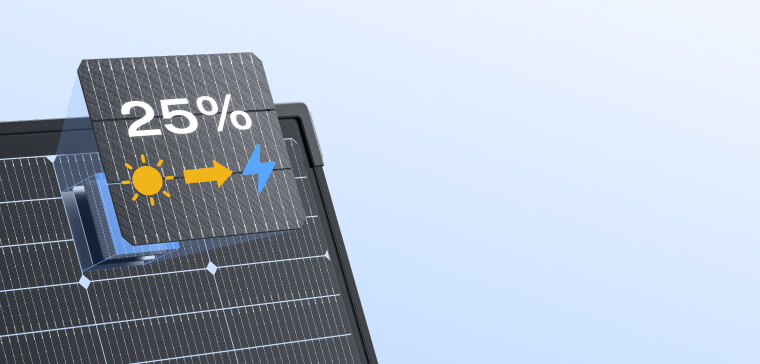

Upgraded N-Type TOPCon Solar Cells:

Up to 25% conversion efficiency
- Monocrystalline: 21%-23%
- TOPCon: Up to 25%
Performs well in overcast conditions. Generates 3-6% more energy in low light than P-PERC.
Adapts to dull lighting conditions, maintaining a high power generation rate even on overcast days.
High energy conversion at hot temperatures
- Monocrystalline: -11.7%
- TOPCon: -9%
Up to 30-year lifespan*,90% Output
- Monocrystalline: 25 years
- TOPCon: 30 years

*Lifespan depends on actual use.

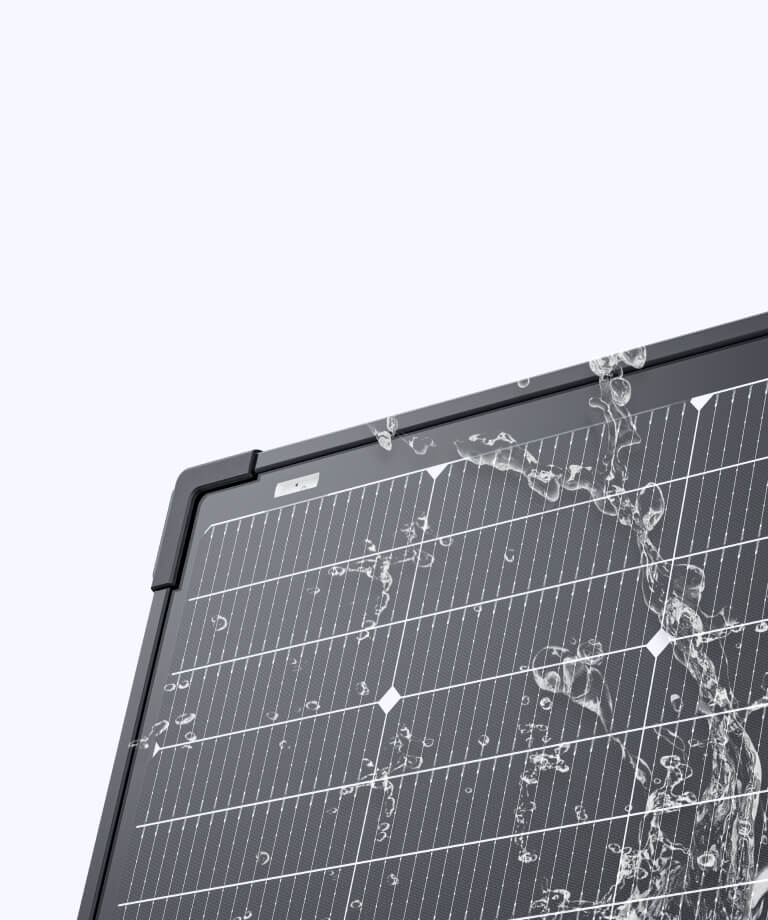

Coated with Protective Lamination & Tempered Glass

Durable, All-Weather Design

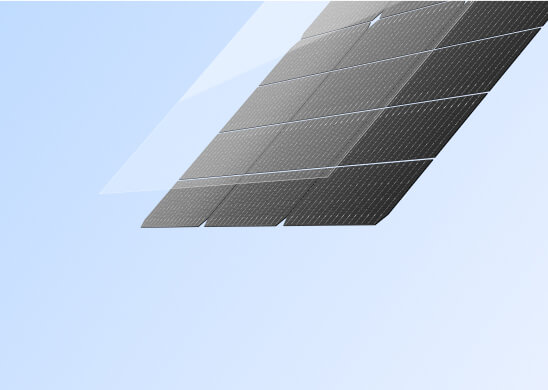

Built with robust anti-corrosive aluminum frame, TOPCon cells feature 1.1mm ultra-thin tempered glass for excellent light transmission, POE films for UV and moisture resistance, PET backsheets for durability. The panel is IP68-rated with waterproof XT60-W connector, ensuring robust, weather-resistant performance.

Durable

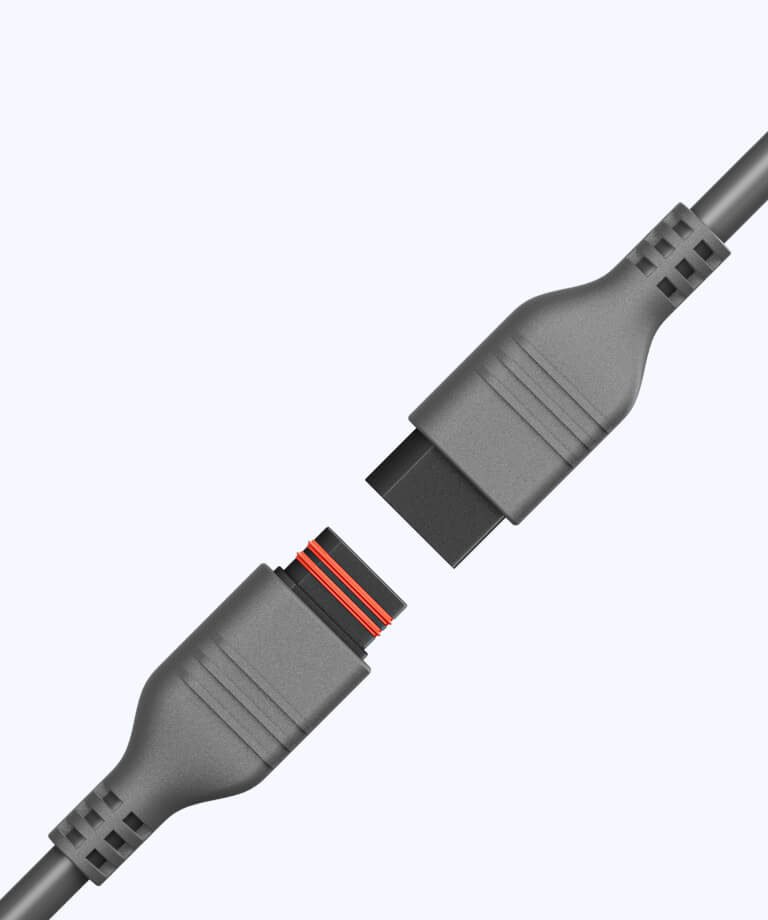

Waterproof connector
IP68

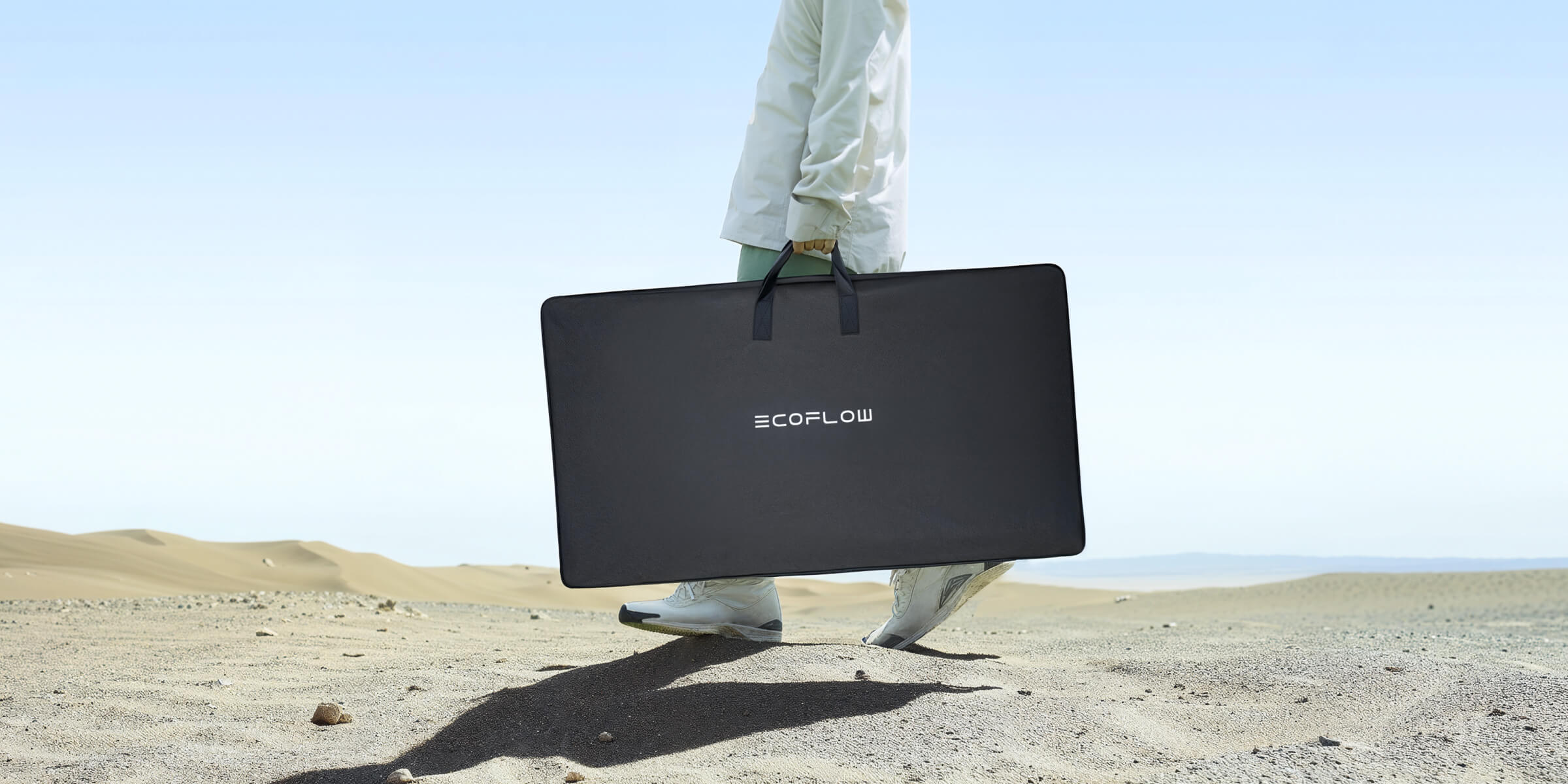

Flexible, Lightweight Design for Adjustable Power Needs

The 500W setup weighs only 37 lbs (16.8 kg) . The modular design enables flexible power configuration. For situations requiring less than 500W or a lighter setup, the system can be split into individual panels, offering both flexibility and reduced weight. Featuring 3M™ Dual Lock™ Reclosable Fasteners^[3], ensures quick and steady assembly, and the protective bag makes transport and storage effortless.

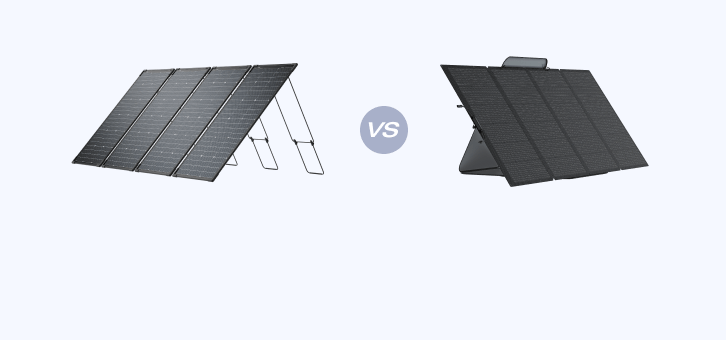

125W Bificial Modular Solar Panel

500W(125W*4) | 16.8KG

250W(125W*2) | 8.4KG

125W(125W*1) | 4.2KG

400W Portable Solar Panel

19KG | Non-adjustable weight

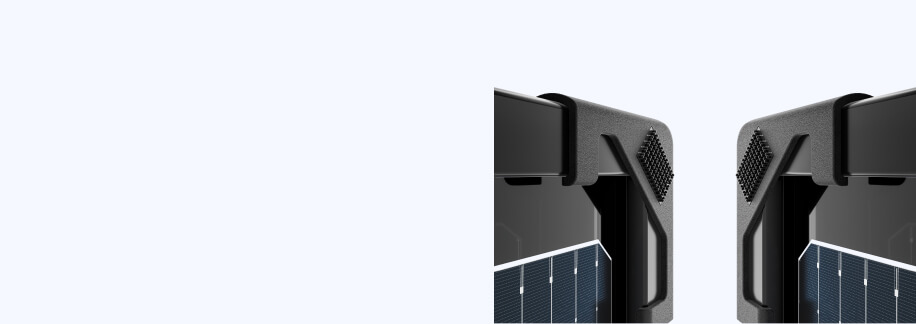

3M™ Dual Lock™ Reclosable Fasteners

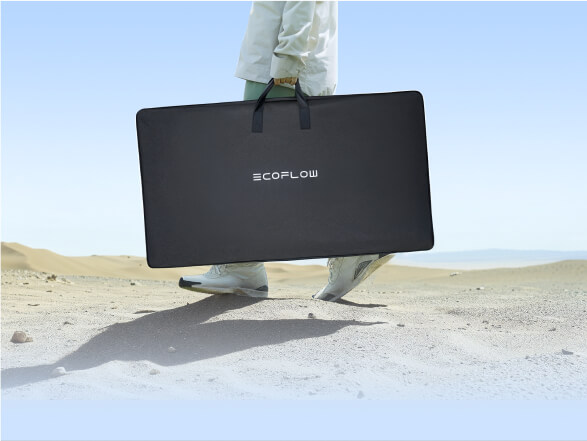

Protective Bags

Universally Compatible Solar Cable

Plug and Play with Your Power System

Easily connect to third-party solar systems using the included photovoltaic connector (MC4 compatible)^[4]. Safely charge your power systems and portable power stations with XT60 connectors, featuring waterproof, touch-safe, anti-leak technology for reliable performance.

EcoFlow 125W Bificial Modular Solar Panel Charging Times

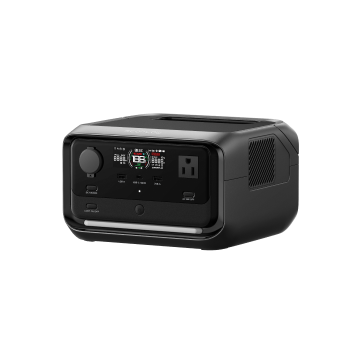

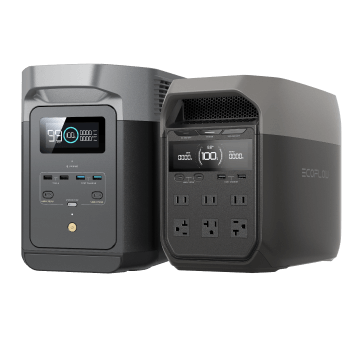

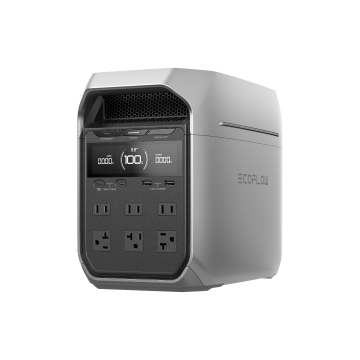

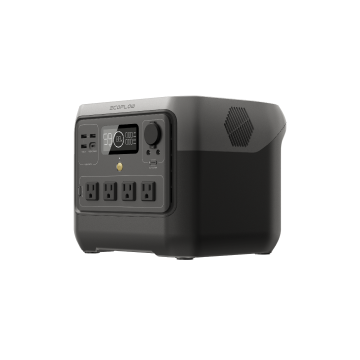

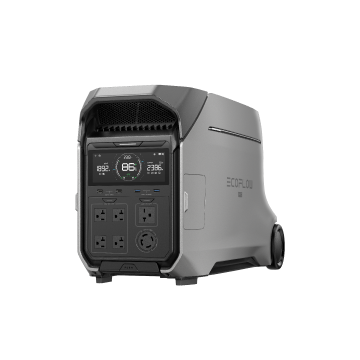

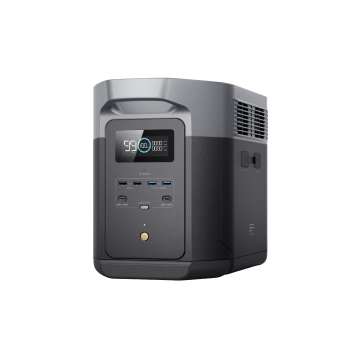

EcoFlow Portable Power Stations	RIVER 2 Pro	RIVER 3 Plus	DELTA 2/DELTA 3	DELTA 3 Plus	DELTA 2 Max	DELTA Pro	DELTA Pro 3
Battery Capacity	768Wh	286Wh	1024Wh	1024Wh	2048Wh	3600Wh	4096Wh
Battery Solar Input	220W, Max 1*PV Input Port, 11-50V 13A 220W	220W, Max 1*PV Input Port,11~55V, 13A 220W	500W, Max 1*PV Input Port 10-60V 15A 500W	1000W, Max 2*PV Input Port, 11~60V 15A 500W	1000W,Max 2*PV Input Port, 10-60V 15A 500W	1600W, Max 1*PV Input Port, 11-150V 15A 1600W	2600W, Max 2*PV Input Port: LPV: 11-60V 20A 1000W HPV: 11-150V 15A 1600W

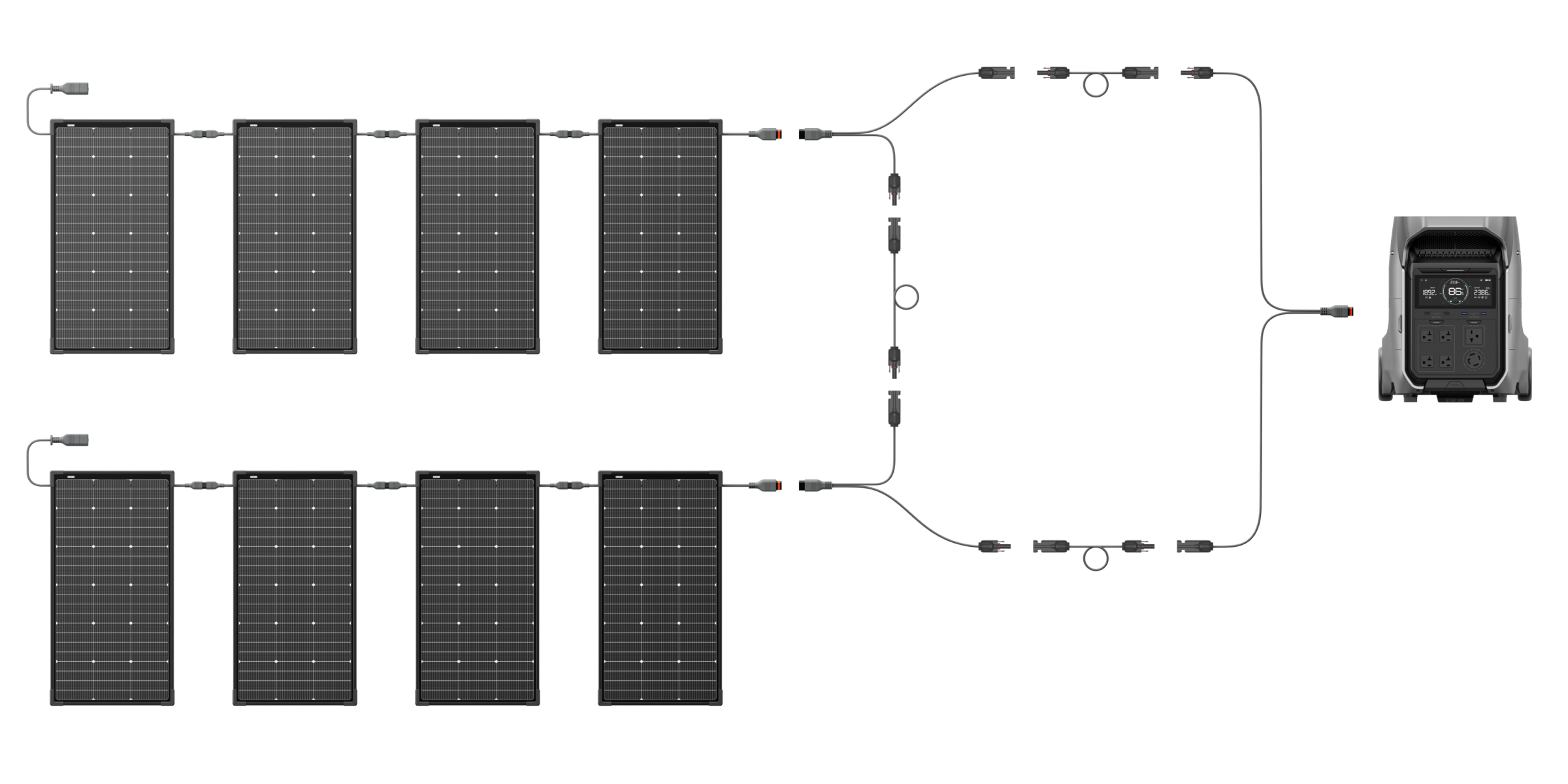

Recommended Pairing Quantity and Connection Methods	2 pieces in parallel	1 piece	4 pieces in parallel	4 pieces in parallel for each PV input ports, 8 panels in total	4 pieces in parallel for each PV input ports, 8 panels in total	4 pieces in parallel and 3 strings in series, 12 panels in total	4 pieces in parallel and 3 strings in series, 12 panels in total
0-100% Charging Time(hr)*	3.84	2.86	2.56	1.28	2.56	3.00	3.41
Average Daily Power Generation**	1kWh	0.5kWh	2kWh	4kWh	4kWh	6kWh	6kWh

*Calculated at 80% of solar panel power, the time interval takes into account various weather conditions.

**Calculate based on 5 hours of sunlight, taking the US as an example, where data includes weather factors such as rain throughout the year.

What's in the box

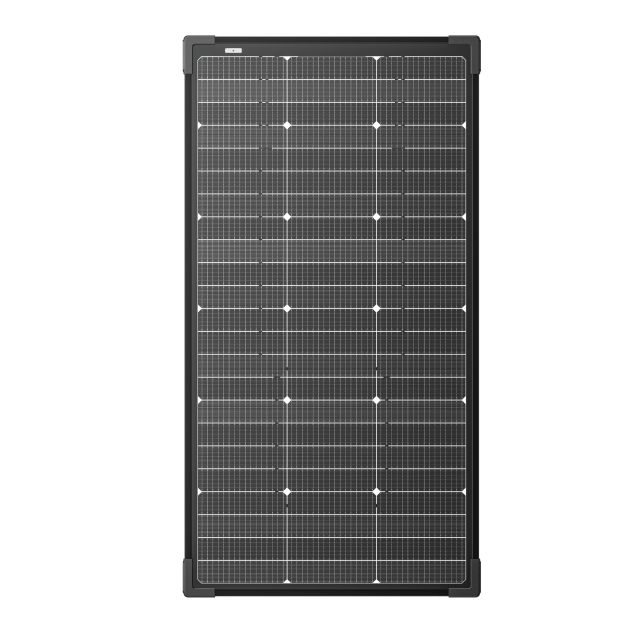

EcoFlow 125W Bifacial Modular Solar Panel
*The number of solar panels varies depending on the kit: 1-piece, 2-piece, and 4-piece kit.
EcoFlow XT60W to XT60i Extension Charging Cable x 1
*Included in the 1-piece/2-piece kit

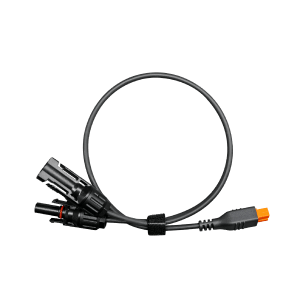

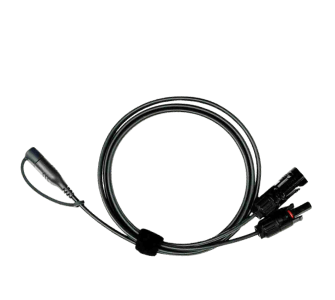

EcoFlow XT60W to Solar Connector Extension Cable (MC4 Compatible) x 1
*Included in the 4-piece kit

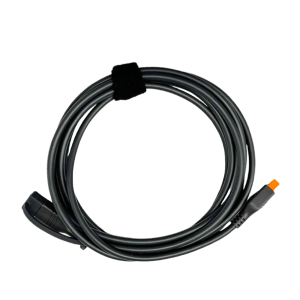

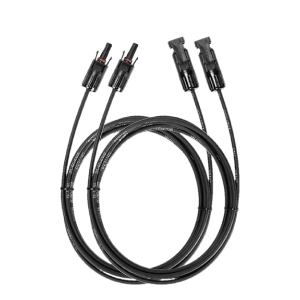

EcoFlow Solar Extension Cable (6.56 feet/ 2M)
*Two cables included in the 4-piece kit
EcoFlow Solar Connector to XT60i Extension Cable (MC4 Compatible) x 1
*Included in the 4-piece kit

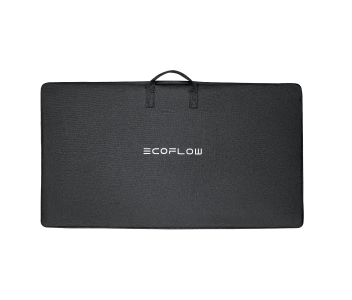

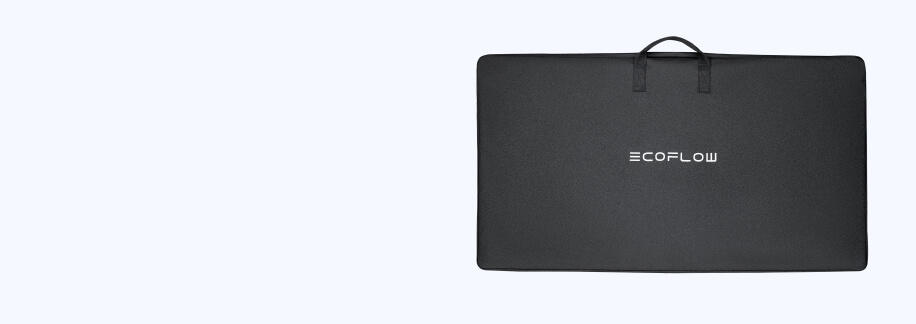

Protective Bag
*Included in the 2-piece/4-piece kit, the 2-piece kit has 1 bag, and the 4-piece kit has 2 bags.

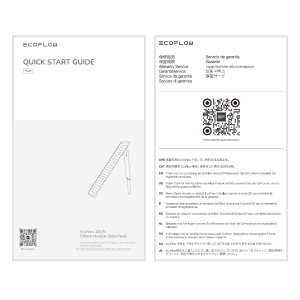

Quick Start Guide, Safety Instructions & Warranty Card

Specs

Rated Power
STC 125W (±3W)BNPI 138W (±3W)
Open Circuit Voltage
50V
Short Circuit Current
STC 3.2ABNPI 3.4A
Optimal Operating Voltage
43V
Optimal Operating Current
STC 3ABNPI 3.2A
Recommended Ambient Temperature
-40°C to 85°C (-24°F to 185°F)
Efficiency
25%
Bifaciality Coefficients
80%±5%
Weight
Approx. 4.2 kg (9.26 lbs)
Dimensions (L×W×H)
612×1154×22 mm (24.1×45.4×0.87 in)
Maximum System Voltage
600V DC (IEC/UL)
Cell Type
TOPCon monocrystalline silicon
Connector Type
XT60
Waterproof & Dustproof Rating
Solar Panel IP68XT-60 Connector IP68
Warranty (US)
5 Years
Lifespan
30 years, 90%

*Standard Test Conditions (STC): 1000W/m² (92.9W/ft²), AM1.5, 25°C (77°F).

**Bifacial Standard Test Conditions (BSTC/BNPI): Front side 1000W/m² (92.9W/ft²), rear side 135W/m² (12.5W/ft²), AM1.5, 25°C (77°F).
